What Materials Make the Most Effective CPU Heat Sinks and Why?

I. Introduction

In the world of computer hardware, CPU heat sinks play a crucial role in maintaining optimal performance and longevity of your system. As processors become more powerful, the need for efficient heat dissipation becomes increasingly important. A well-designed CPU heat sink can make the difference between a stable, high-performing system and one that struggles with thermal throttling or even hardware damage.

Heat sinks work by conducting heat away from the CPU and dissipating it into the surrounding air. The effectiveness of this process largely depends on the materials used in the heat sink's construction. Different materials offer varying levels of thermal conductivity, weight, and cost, all of which impact the overall performance of the cooling solution.

In this article, we'll explore the materials that make the most effective CPU heat sinks and why they matter to you as a potential buyer. Whether you're building a new system or upgrading an existing one, understanding the properties of different heat sink materials will help you make an informed decision.

II. Common Materials Used in CPU Heat Sinks

When shopping for a CPU heat sink, you'll encounter several materials commonly used by heatsink manufacturers. Each material has its own set of properties that influence its effectiveness in heat dissipation. The most common materials include:

1. Aluminum

2. Copper

3. Nickel-plated copper

4. Composite materials

Let's delve deeper into how these materials compare in terms of thermal performance and other important factors.

III. Comparing Heat Sink Materials

When evaluating CPU heat sink materials, several key factors come into play:

1. Thermal Conductivity

Thermal conductivity is perhaps the most critical property of a heat sink material. It measures how efficiently the material can transfer heat. Copper leads the pack with a thermal conductivity of about 400 W/mK, while aluminum comes in at around 235 W/mK.

2. Weight and Density

The weight of a heat sink affects both installation and long-term stress on the motherboard. Aluminum is significantly lighter than copper, making it a preferred choice for larger heat sinks.

3. Cost

Material cost directly impacts the price of the heat sink. Aluminum is generally less expensive than copper, making it a popular choice for budget-friendly options.

4. Durability and Longevity

The longevity of a heat sink depends on its resistance to corrosion and physical damage. Some materials may require more maintenance or degrade faster over time.

IV. Aluminum Heat Sinks

1. Advantages

Aluminum heat sinks are lightweight and cost-effective, making them a popular choice for many CPU heat sink designs. They're easy to manufacture and can be formed into complex shapes for efficient heat dissipation.

2. Disadvantages

The main drawback of aluminum is its lower thermal conductivity compared to copper. This means it may not be as effective for high-performance or overclocked CPUs.

3. Best Use Cases

Aluminum heat sinks are ideal for budget builds, systems with moderate heat output, and situations where weight is a critical factor.

V. Copper Heat Sinks

1. Advantages

Copper excels in thermal conductivity, making it extremely efficient at drawing heat away from the CPU. This makes copper heat sinks particularly effective for high-performance systems.

2. Disadvantages

The primary drawbacks of copper are its weight and cost. Copper heat sinks are significantly heavier than their aluminum counterparts and can be more expensive.

3. Best Use Cases

Copper heat sinks are best suited for high-performance systems, overclocked CPUs, and situations where maximum cooling efficiency is required.

VI. Nickel-Plated Copper Heat Sinks

1. Advantages

Nickel-plated copper combines the high thermal conductivity of copper with improved corrosion resistance and aesthetic appeal. The nickel plating can also help prevent oxidation over time.

2. Disadvantages

The plating process slightly reduces thermal conductivity compared to pure copper, though the difference is often negligible. These heat sinks can also be more expensive due to the additional manufacturing step.

3. Best Use Cases

Nickel-plated copper heat sinks are excellent for high-performance systems where aesthetics are important, such as in custom-built PCs with transparent cases.

VII. Composite and Advanced Materials

As technology advances, heatsink manufacturers are exploring new materials and composites to enhance cooling performance.

1. Composite Heat Sinks

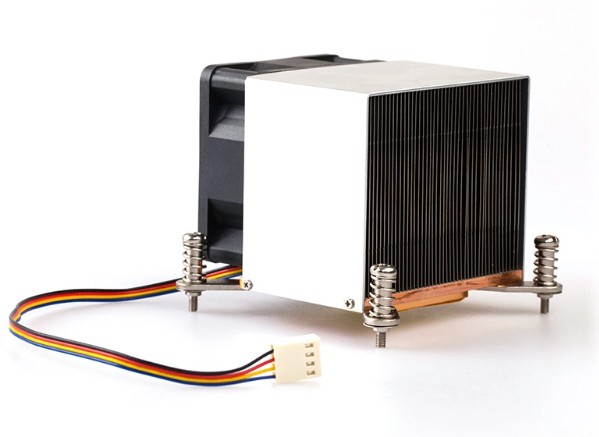

Some manufacturers combine materials like aluminum and copper to balance performance, weight, and cost. For example, a heat sink might use a copper base with aluminum fins.

2. Emerging Materials

Research into materials like graphene and carbon nanotubes shows promise for future heat sink designs. These materials could potentially offer superior thermal conductivity in lighter, more compact forms.

3. Potential Future Developments

Advancements in Custom Heatsink Design may lead to more efficient shapes and structures that maximize heat dissipation regardless of the base material used.

VIII. Factors to Consider When Choosing a Heat Sink Material

When selecting a CPU heat sink, consider the following:

1. CPU power and heat output

2. Case size and airflow

3. Budget constraints

4. Aesthetic preferences

IX. Maintenance and Longevity of Different Materials

1. Cleaning Methods

Regular cleaning is essential for maintaining heat sink efficiency. Aluminum and nickel-plated copper are generally easier to clean and maintain than pure copper, which can tarnish over time.

2. Potential for Oxidation or Corrosion

Copper can develop a patina that may slightly reduce its thermal efficiency. Aluminum and nickel-plated copper are more resistant to this type of degradation.

3. Long-term Performance Considerations

While all heat sink materials will perform well initially, their long-term effectiveness can vary. Copper and nickel-plated copper tend to maintain their performance better over time.

X. Conclusion

The choice of material for a CPU heat sink significantly impacts its cooling performance. While copper offers the best thermal conductivity, aluminum provides a lightweight and cost-effective alternative. Nickel-plated copper and composite materials offer balanced solutions for various needs.

When choosing a CPU heat sink, consider your specific requirements, including your system's heat output, budget, and aesthetic preferences. Remember that the most expensive or highest-performing material isn't always necessary – the best choice is the one that meets your particular needs.

As Custom Heatsink Design continues to evolve, we may see even more efficient cooling solutions in the future. For now, understanding the properties of current materials will help you make an informed decision when purchasing a CPU heat sink, ensuring your system stays cool and performs at its best.
