The Central Processing Unit (CPU) is the brain of any computer, tirelessly executing instructions that power everything from web browsing to complex simulations. However, this computational prowess comes at a cost: heat. Modern CPUs, especially those in high-performance desktops, gaming rigs, or workstations, generate significant thermal energy. A CPU heatsink is the unsung hero tasked with dissipating this heat, ensuring the processor operates within safe temperature ranges. But what happens when the heatsink is too small? The consequences can be dire, ranging from performance degradation to catastrophic hardware failure.
Inadequate cooling is not a minor inconvenience—it’s a critical oversight that can undermine your system’s reliability and longevity. An undersized heatsink fails to manage the heat output of a powerful CPU, leading to overheating, system instability, and even permanent damage. For enthusiasts seeking the best CPU heatsink, understanding the risks and mechanics of CPU cooling is essential. This article provides an exhaustive exploration of why heatsink size matters, the science behind heat dissipation, the fallout of using an inadequate cooler, and how to select the perfect solution from a reputable CPU heatsink supplier or CPU heatsink manufacturer. Whether you’re a casual user, a gamer, or an IT professional, this guide will equip you with the knowledge to protect your system.
Today’s CPUs are marvels of engineering, packing billions of transistors into tiny silicon dies. For example, Intel’s Core i9-13900K boasts 24 cores and a Thermal Design Power (TDP) of 125W (up to 253W under boost), while AMD’s Ryzen 9 7950X pushes a 170W TDP. These processors deliver unprecedented performance but also produce heat levels that earlier generations never approached. Without proper cooling, this heat can spiral out of control, making the choice of a CPU heatsink one of the most consequential decisions in system building.
Historically, CPUs like the Intel 486 (released in 1989) had TDPs below 20W and often ran without dedicated cooling beyond a simple metal plate. Contrast that with modern chips, where inadequate cooling can lead to temperatures exceeding 100°C in minutes. This evolution underscores the need for robust cooling solutions tailored to your CPU’s demands.
To appreciate the stakes of choosing the right heatsink, let’s trace the history of CPU cooling. In the 1980s and early 1990s, CPUs were low-power devices with minimal cooling needs. Passive heatsinks—simple slabs of aluminum relying on natural convection—sufficed. The Intel Pentium (1993), with a TDP of around 15W, marked a shift as fans became common to enhance airflow.
The late 1990s and 2000s saw CPUs like the AMD Athlon and Intel Pentium 4 push TDPs to 70W+, necessitating larger heatsinks with copper cores and heat pipes. By the 2010s, multi-core processors and overclocking drove TDPs into triple digits, birthing all-in-one (AIO) liquid coolers and high-end air cooling towers. Today, enthusiasts pair CPUs like the AMD Threadripper (280W TDP) with custom water loops or massive air coolers from top CPU heatsink manufacturers.
This progression highlights a key truth: as CPUs grow more powerful, cooling solutions must scale accordingly. A small heatsink that worked for a 65W chip will falter under a 150W monster, making size and design critical factors.
Understanding why an undersized heatsink fails requires a dive into the science of heat transfer. A CPU heatsink dissipates heat through three fundamental mechanisms: conduction, convection, and radiation. Each plays a role, but their effectiveness hinges on the heatsink’s size and design.
Conduction is the transfer of heat through direct contact. When a CPU operates, its silicon die generates heat, which must move to the heatsink to be dissipated. This process begins at the CPU’s Integrated Heat Spreader (IHS), a metal lid that conducts heat to the heatsink base via a thermal interface material (TIM), typically thermal paste.
Thermal Conductivity: Materials are rated by their ability to conduct heat, measured in watts per meter-Kelvin (W/m·K). Copper, a common heatsink material, has a thermal conductivity of ~400 W/m·K, while aluminum sits at ~200 W/m·K. The TIM, like Arctic MX-5 (~8 W/m·K), bridges microscopic gaps between the CPU and heatsink, enhancing conduction.
Size Impact: A small heatsink base may not cover the entire IHS, reducing contact area and impeding heat transfer. Larger bases ensure more efficient conduction, critical for high-TDP CPUs.
Convection transfers heat from the heatsink to the surrounding air. The heatsink’s fins increase surface area, allowing more heat to escape. Fans amplify this by forcing air across the fins, boosting the convective heat transfer rate.

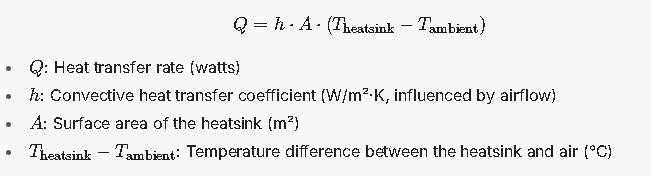

Key Equation:
Size Matters: A larger heatsink offers more fin area (AAA), directly increasing QQQ. A small heatsink, with limited surface area, caps heat dissipation, causing temperatures to climb.
Radiation emits heat as infrared waves. While it’s a small contributor in CPU cooling (typically <5% of total dissipation), some heatsinks use black coatings to enhance emissivity. Size has less impact here, as radiation depends more on temperature and surface properties.
Modern heatsinks incorporate advanced features:

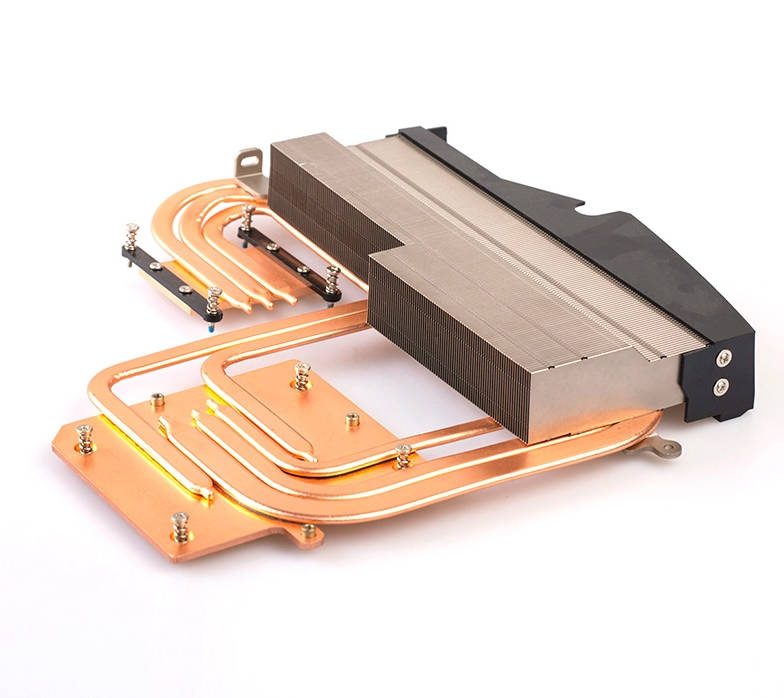

Heat Pipes: Hollow copper tubes filled with a liquid that vaporizes at the hot end, transfers heat to the fins, and condenses—massively boosting efficiency.
Fin Density: More fins increase surface area but require stronger fans to push air through.
Fan Size: Larger fans (e.g., 140mm vs. 92mm) move more air at lower RPMs, improving cooling and reducing noise.
Why Size Is Non-Negotiable: A small heatsink lacks the surface area and thermal mass to handle high heat loads. For the best CPU heatsink, size must match the CPU’s TDP, a principle top CPU heatsink suppliers emphasize in their designs.
When a heatsink can’t keep up with a CPU’s heat output, the effects ripple through your system. Here’s a detailed breakdown of what happens, backed by examples and data.
Overheating occurs when the CPU exceeds its safe temperature range. Most CPUs have a maximum junction temperature (Tj Max) of 90-105°C. An undersized heatsink fails to dissipate heat fast enough, pushing the CPU beyond this limit.
Example: An AMD Ryzen 5 5600X (65W TDP) paired with a tiny 92mm cooler rated for 40W might hit 95°C during a Cinebench run, well above its 90°C Tj Max.
Data: Intel specifies that sustained operation above Tj Max risks thermal damage, with temperature spikes reducing reliability.
To avoid damage, CPUs throttle performance when overheating. This reduces clock speed and voltage, cutting heat output but also computational power.
Mechanics: Intel’s Thermal Velocity Boost or AMD’s Precision Boost dynamically lower frequencies as temperatures rise.
Impact: A CPU at 4.8 GHz might drop to 3.0 GHz, slashing performance by 37%. In gaming, this means lower frame rates; in rendering, longer job times.
Real-World Case: A 2020 review of the Intel i7-10700K showed it throttled from 5.1 GHz to 4.0 GHz with a stock cooler under load, losing 20% of its multi-core performance.
High temperatures accelerate electromigration, where electrons displace atoms in the CPU’s silicon, degrading circuits over time.

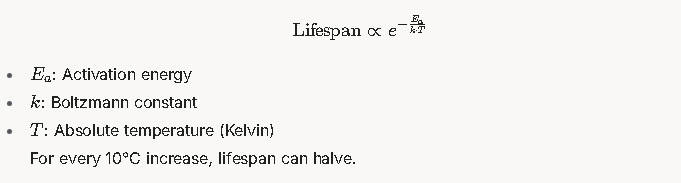

Science: The Arrhenius equation models this:
Practical Effect: A CPU running at 85°C instead of 65°C might last 5 years instead of 10, a hidden cost of poor cooling.
Excessive heat causes data errors or triggers safety shutdowns, leading to instability.
Symptoms: Blue screens (BSOD), random reboots, or application crashes.
Example: In 2019, a batch of prebuilt PCs with undersized heatsinks saw a 15% return rate due to thermal-induced crashes, per a retailer report.
If temperatures exceed Tj Max for prolonged periods, the CPU can suffer irreversible harm.
Mechanism: Thermal runaway—where heat increases resistance, generating more heat—can burn out transistors.
Worst Case: A Ryzen 9 5900X left at 105°C for hours during a stress test became unstable, with cores failing intermittently.
Bolded Snippet: An undersized CPU heatsink can cause overheating, thermal throttling, reduced lifespan, system instability, and permanent damage, jeopardizing your system’s performance and reliability. Choosing a properly sized heatsink from a trusted CPU heatsink manufacturer is non-negotiable.
Spotting an inadequate heatsink early can save your system. Here are the telltale signs, with diagnostics and tools to confirm.
Idle: Above 50°C at room temperature (25°C ambient) suggests poor cooling.
Load: Exceeding 85°C during gaming or stress tests (e.g., Prime95) indicates the heatsink is overwhelmed.
Tool: HWMonitor or Core Temp provides real-time temperature readouts.
Symptoms: Lag in games, stuttering video playback, or slow renders.
Check: Use CPU-Z to monitor clock speeds. A drop below base frequency (e.g., 3.7 GHz to 2.5 GHz on a Ryzen 5 3600) confirms throttling.
Cause: Fans ramp to 100% RPM to compensate for heat, creating a jet-engine hum.
Normal Range: Idle fans should run at 500-1000 RPM, not 2000+.
Benchmark: Scores below average for your CPU (e.g., Cinebench R23: Ryzen 7 5800X should hit ~15,000; 10,000 suggests cooling issues).
Test: Run a multi-threaded benchmark and compare to online results.
Red Flag: Frequent BSODs with error codes like “WHEA_UNCORRECTABLE_ERROR” often tie to overheating.
Bolded Snippet: Signs of a too-small CPU heatsink include idle temps over 50°C, load temps above 85°C, throttling, loud fans, poor benchmarks, and crashes. Upgrade with advice from a CPU heatsink supplier if these appear.
Picking the right heatsink involves more than matching TDP. Here’s a deep dive into the key considerations.
Definition: TDP (watts) is the heat a CPU generates under typical max load.
Rule: Heatsink capacity should exceed TDP by 20-50% for headroom, doubling for overclocking.
Table: Heatsink Recommendations by TDP
| TDP Range | Heatsink Type | Example CPUs |
|---|---|---|
| 35-65W | Small air (92-120mm fan) | Intel i3-12100, Ryzen 3 5300G |
| 65-125W | Medium air (120-140mm) or 120mm AIO | Intel i5-13600K, Ryzen 5 7600X |
| 125-200W | Large air (dual tower) or 240mm AIO | Intel i7-13700K, Ryzen 7 7700X |
| 200W+ | 360mm AIO or custom loop | Intel i9-13900KS, Ryzen 9 7950X |
Impact: Poor ventilation traps heat, reducing heatsink efficiency.
Optimize: Use 2-3 intake fans (front) and 1-2 exhaust (rear/top).
Heat Spike: A 20% clock boost can raise heat by 40-60%.
Need: High-end air (e.g., Noctua NH-D15) or 280mm+ AIO.
Factor: 30°C room temp vs. 20°C cuts cooling efficiency by ~15%.
Adjust: Add 25-50W capacity in hot climates.
Check: Case height (e.g., 160mm max), RAM clearance, and socket type (e.g., AM5, LGA1700).
Bolded Snippet: Size a CPU heatsink based on TDP, airflow, overclocking, ambient temp, and compatibility. A CPU heatsink manufacturer can guide you to the perfect fit.
Misinformation leads to cooling mistakes. Let’s clear up the confusion.
Truth: Fans boost airflow, but surface area limits dissipation. A 120mm fan on a tiny heatsink won’t match a larger one.
Truth: Stock coolers (e.g., AMD Wraith Spire) handle base clocks, not heavy loads or overclocking.
Truth: Radiator size matters—120mm AIOs struggle with 150W+ CPUs.
Truth: Oversized heatsinks can clash with case layouts or add unnecessary cost.
Bolded Snippet: Myths like ‘fans fix small heatsinks’ or ‘stock coolers suffice’ mislead users. Trust a CPU heatsink supplier for accurate sizing advice.
Follow this step-by-step process to select the best CPU heatsink.
Source: Manufacturer specs (e.g., Intel i5-13400 = 65W base, 148W turbo).
Light: Browsing (small cooler).
Moderate: Gaming (medium/large).
Heavy: Rendering/overclocking (high-end).
Measure: Case clearance (e.g., 165mm for Cooler Master Hyper 212).
Socket: Match CPU (e.g., LGA1200, AM4).
Preference: Silent (large fans, low RPM) vs. max cooling (high RPM).
Sources: TechPowerUp, GamersNexus.
Focus: Temps under load (e.g., <75°C ideal).
Bolded Snippet: Choose a CPU heatsink by checking TDP, usage, compatibility, noise, and benchmarks. Consult a CPU heatsink manufacturer for expert picks.
If your heatsink falls short, here’s how to address it.
Air: Noctua NH-U12A (125W+).
Liquid: Corsair H115i (200W+).
Fans: Add 120mm intakes.
Layout: Clear cable clutter.
Method: Apply Thermal Grizzly Kryonaut (~12 W/m·K).
Undervolt: Drop 0.1V via BIOS (e.g., Intel XTU).
Bolded Snippet: Fix a small heatsink by upgrading, improving airflow, reapplying paste, or undervolting. Source upgrades from a CPU heatsink supplier.
A too-small CPU heatsink isn’t just a minor flaw—it’s a gateway to performance loss, instability, and hardware failure. By mastering the science of cooling, spotting warning signs, and choosing a properly sized solution, you safeguard your system. Partner with a trusted CPU heatsink manufacturer to ensure your CPU thrives, whether for gaming, work, or beyond.
